EA Autosampler Series Convenient Automation
- Streamlined sample throughput
- Minimum operation effort and unattended 24/7 operation
- Less idle time, more efficient resource utilization, and increased lab profitability
- Highly precise analysis results due to optimal, uniform dosing process
- Significantly reduced effort for operation and sample preparation
- Enhanced operation comfort in analysis of demanding liquids
Autosampler for Elemental Analysis
- Enhanced lab efficiency, less idle time between analysis
- Enabling unattended and 24/7 operation
- Enhanced results quality due to maximum precision in sample dosing, elimination of operation mistakes
- Easy to use - software controlles operation, implemented self cleaning (for liquids sampler)
Brochures
Title | Language | Info |
---|---|---|
Brochure multi EA 5100 Elemental Analysis (EN) | en | PDF, 406 KB |
Broschüre compEAct (DE) | de | PDF, 364 KB |
Brochure compEAct (EN) | en | PDF, 359 KB |
Flyer Accessories for multi EA 5100 (EN) | en | PDF, 304 KB |
Flyer Zubehöre multi EA 5100 (DE) | de | PDF, 323 KB |
Broschüre multi EA 5100 Elementanalytik (DE) | de | PDF, 401 KB |
MMS
Multi-Matrix Sampler, suited for the automated introduction of up to 112 liquid or 35 solid samples in vertical and horizontal operation mode.
- Cost effcitive 4-in-1 automation solution suitale for in vertical and horizontal operation mode
- Flexible system configuration, accessory kits for dosing of solids/AOX (35 pos.), liquids/EOX (112 pos.), TOC (60 pos.), liquids with heating/cooling (112 pos.)
- Liquids up to 500 μL (direct injection by μL-syringe), solids up to 110 mg resp. AOX samples acc. batch and column method (boat dosing by gripper)
- Easy operation software -controlled, automatic recognition of present accessory kit
- High sample throughput
- Unlimited flexibility, upgradable at any later time by suited extension-kits
- Easy operation – direct injection of highly viscose liquids without dilution by heating option for tray and syringe
- Maximum safety and best results – cooling option for tray and syringe ensure safe and complete dosing of very light volatile liquids
- Reduced maintenance effort – automatic rinsing cycles with sample and pure solvent, sealed niveau vessel for waste disposal

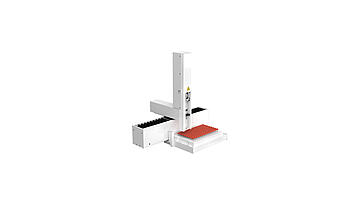

MMS-T
Temperature-controllable liquids sampler, suited for the automated introduction of up to 112 liquid in vertical and horizontal operation mode.
- Smart multi-purpose automation solution for liquids
- Unlimited flexibility and ease of use due to temperature controllable sample tray and dosing syringes
- Faster processing of challenging liquids – direct injection of highly viscose samples without dilution by heating option
- Maximum safety and best results – safe and complete dosing of very light volatile liquids by cooling option
- Reduced maintenance effort – automatic rinsing cycles with sample and pure solvent, sealed niveau vessel for waste disposal
- Flexible system extension for automated dosing od solids/ AOX samples (35 pos.) in horizontal opertaion mode
- Easy operation software-controlled, automatic recognition of present accessory kit
LS 1
Liquids sampler, suited for the automated introduction of up to 18 samples with compEAct analysis sytems. Ideal solution for comfortable processig of small sample batches.
- Precise dosing of up to 100 µL
- Injection speed and volumes adaptable in 1 µL-steps by operator
- Accelerated throughput speed
- Easy operation – automatic rinsing cycles with sample and pure solvent, sealed waste vessel
LS 2
Liquids sampler, suited for the automated introduction of up to 120 samples with compEAct analysis sytems. Ideal solution for high throughput applications in industrial QC routine and contract analysis.
- Precise dosing of up to 100 µL
- Injection speed and volumes adaptable in 1 µL-steps by operator
- Accelerated throughput speed
- Easy operation – automatic rinsing cycles with sample and pure solvent, sealed waste vessel
LS-T
Temperature-controllable liquids sampler, suited for the automated introduction of up to 112 liquids in with compEAct analyzers.
- Smart multi-purpose automation solution for liquids
- Unlimited flexibility and ease of use due to temperature controllable sample tray and dosing syringes
- Faster processing of challenging liquids – direct injection of highly viscose samples without dilution by heating option
- Maximum safety and best results – safe and complete dosing of very light volatile liquids by cooling option
- Reduced maintenance effort – automatic rinsing cycles with sample and pure solvent, sealed niveau vessel for waste disposal
- Easy operation software-controlled

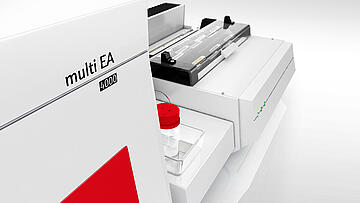

FPG 48

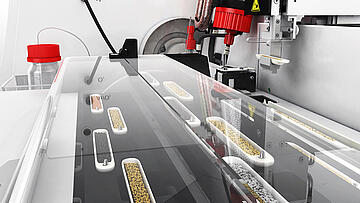

Solids sampler for up to 48 samples in ceramic (C/S and TOC analysis) resp. quartz sample boats (Cl analysis) with multi EA 4000 systems.
- Suitable for automation of C/S and Cl analysis and the determination of environmelntal-important sum parameters – TOC/TC/TIC, EC/OC/RC/BOC
- Sample masses up to 3 grams
- Optional function for automated disposal of consumed ceramic sample boats
- Flame sensor option for Cl analsis of organic materials – automatic optimization of combustion process to prevent soot formation and low quality results
- Easy operation software-controlled
Products
FPG 48 solid autosampler
Solids autosampler for multi EA 4000
Order number: 450-126.574
Liquids sampler LS 1
Liquids autosampler for small sample series for compEAct
Order number: 450-900.450
Liquids sampler LS 2
Liquids autosampler for high throughput applications for compEAct
Order number: 450-900.451
LS-T temperature-controlled sampler
Temperature-controlled liquids autosampler for compEAct
Order number: 450-900.452
MMS-T temperature-controlled autosampler
Temperature-controllable liquids autosampler for multi EA 5100
Order number: 450-900.453
Multi Matrix Sampler - MMS
Versatile multi-matrix autosampler for liquids, solids, TOC, AOX and EOX samples for multi EA 5100
Order number: 450-300.030
Technical Data
Dimension (width x depth x height) | |
---|---|
FPG 48 solid autosampler | 500 mm x 550 mm x 460 mm |
Liquids sampler LS 1 | 540 mm x 340 mm x 410 mm |
Liquids sampler LS 2 | 540 mm x 340 mm x 410 mm |
LS-T temperature-controlled sampler | 510 mm x 500 mm x 280 mm |
MMS-T temperature-controlled autosampler | 510 mm x 500 mm x 280 mm |
Multi Matrix Sampler - MMS | 510 mm x 500 mm x 280 mm |
Order Information
Order number | Description |
---|---|
450-126.574 | FPG 48 solids autosampler for multi EA 4000 |
450-900.450 | Liquids sampler LS 1 |
450-900.451 | Liquids sampler LS 2 |
450-900.452 | LS-T temperature controlled sampler |
450-900.453 | MMS-T temperature-controlled autosampler |
450-300.030 | Multi Matrix Sampler - MMS |
Accessories
Collecting dish FPG 48 | 402-815.075 |
Alignment tool FPG 48 | 702-886.268 |
Boat deposition station for FPG 48 | 450-889.728 |
Flame sensor FPG 48 | 450-889.713 |
Interface cable for accessories | 702-889.090 |
Adjustment tool for solids rack MMS / autoX 112 | 402-889.837 |
Solids kit T for MMS-T | 450-900.454 |
Liquids kit for MMS 5100 | 450-300.033 |
Liquids kit "TMP" for MMS 5100 | 450-300.031 |
Boat sensor for MMS and autoX 112 sampler | 450-889.204 |
Solids kit for MMS | 450-300.034 |
TOC kit for MMS | 450-300.035 |
Cover for multi matrix sampler | 450-900.408 |
Software
- The FPG 48 is operated via multiWin operation and data evaluation software.
- The LS 1 is operated via EAvolution operation and data evaluation software.
- The LS 2 is operated via EAvolution operation and data evaluation software.
- The LS-T is operated via EAvolution operation and data evaluation software.
- The MMS-T is operated via multiWin operation and data evaluation software.
- The MMS is operated via multiWin operation and data evaluation software.
The FPG 48 is operated via multiWin operation and data evaluation software.
Product | Required | Included |
---|---|---|
FPG 48 solid autosampler (450-126.574) |
The LS 1 is operated via EAvolution operation and data evaluation software.
Product | Required | Included |
---|---|---|
Liquids sampler LS 1 (450-900.450) |
The LS 2 is operated via EAvolution operation and data evaluation software.
Product | Required | Included |
---|---|---|
Liquids sampler LS 2 (450-900.451) |
The LS-T is operated via EAvolution operation and data evaluation software.
Product | Required | Included |
---|---|---|
LS-T temperature-controlled sampler (450-900.452) |
The MMS-T is operated via multiWin operation and data evaluation software.
Product | Required | Included |
---|---|---|
MMS-T temperature-controlled autosampler (450-900.453) |
The MMS is operated via multiWin operation and data evaluation software.
Product | Required | Included |
---|---|---|
Multi Matrix Sampler - MMS (450-300.030) |
Consumables
402-886.118 | Ceramic boats for HTS and HT systems |
402-889.714 | Quartz boats multi EA 4000 Cl |
450-889.302 | Consumables & spare parts kit for autosampler LS 1 / LS 2 |
402-886.248 | Waste hose for autosampler |
402-823.079 | Removable needles for 50 and 100 µL syringes |
402-300.016 | 100 µL special syringe for LS 1 / LS 2 |
402-300.001 | 50 µL special syringe for LS 1 / LS 2 |
402-889.091 | Set snap caps for 2 mL sample vials |
402-889.092 | Sample vials 2 mL |
450-889.314 | Consumables & spare parts kit MMS-T / LS-T |
402-889.182 | Cleaning wires for µL-syringes |
402-300.106 | Syringe 100 µL , temperature-controllable |
402-300.105 | Syringe 50 µL , temperature-controllable |
402-889.673 | Quartz sample boats with downholder 40 x 9 mm |
402-889.557 | Set sealing disks , 17 mm |
402-889.206 | Septum for solvent vessel |
402-889.674 | Quartz sample boats 40 x 9 mm |
402-889.039 | Adsorption material for boat combustion |
402-889.534 | Syringe 100 µL for MMS |
402-889.533 | Syringe 50 µL for MMS |
402-823.056 | Needles, I.D. 0.35 mm for syringes |
402-886.318 | Sample vials, 8 mL, without lids, 18 x 50 mm |
402-889.594 | Syringe 250 µL with vent |
402-889.593 | Syringe 500 µL with vent |
450-889.306 | Consumables & spare parts kit for liquids autosampler MMS |
