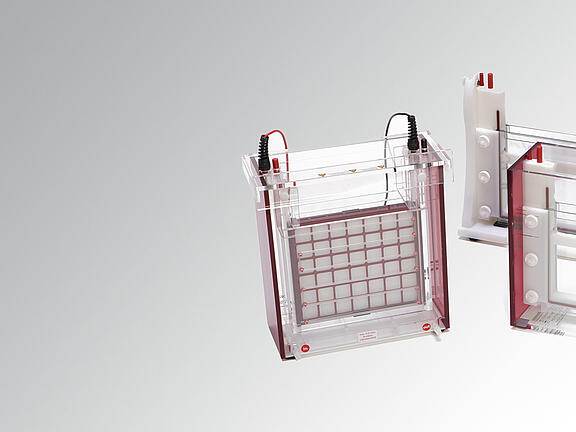

Biometra Eco-Line Robust and Versatile for Your Polyacrylamide Gel Applications
- Modular tank system for PAGE electrophoresis and blotting
- Exceptional separation efficiency even with complex samples
- Cooling option for an integrated water circulation system for sensitive samples
The line is modular composed and allows an individual set-up. A specially designed casting stand provides for convenient gel casting. Glass plates with fixed glass spacers ensure perfect alignment and easy-to use, leak-free casting.
Perfect for PAGE and Blotting
The Biometra Eco-Line for two gel sizes "Mini" and "Maxi" is a robust, modular tank system for polyacrylamide gel electrophoresis and tank blotting. The buffer tank can be used with the electrophoresis module for 1 to 4 gels (Mini) or 1 to 2 gels (Maxi) as well as with the blotting module. The stable design and user-friendly components such as the gel pouring stand for leak-proof pouring of gels as well as the blotting module with color-coded cassettes for error-free blotting ensure a smooth workflow in the laboratory.
- Eco-Mini for 9.4 cm x 8.0 cm gels
- Eco-Maxi for 19.4 cm x 18.5 cm gels
- Tanks with cooling connections for water cooling for sensitive samples
Brochures
| Title | Language | Info |
|---|---|---|
| Brochure EcoLine Blotting Electrophoresis EN) | en | PDF, 674 KB |
| Brochure Product Guide Life Science (EN) | en | PDF, 2 MB |
| Broschüre Produktführer Life Science (DE) | de | PDF, 2 MB |
Ideal for PAGE Electrophoresis and Blotting Applications
With Biometra Eco-Line, Analytik Jena offers a robust, modular tank system for PAGE electrophoresis and blotting applications to support you in your protein analysis. Specially designed for everyday use, gels can be casted quickly, easily and in a space-saving manner in the electrophoresis module. The unique high-tech sealing material used in the gel casting stand ensures leak-free gel casting. Glass plates with fixed spacers also facilitate handling and help you to save valuable time in routine laboratory work. In addition to the comfortable option of running two to four gels simultaneously, the modular tank design also extends the range of applications.
- 2 Models for mini and maxi gels
- Optional blot module to extend the application range
- Bigfoot safety lid
- Extra strong glass plates with fixed spacers for long-term durability
With a wide selection of different combs in combination with unique Divider-Plates (optional for Eco-Mini available) and a specially designed buffer tank, we offer the most flexible and powerful solution to meet your needs perfectly. In addition, the integrated water circulation system (buffer tank EBC) sets new standards in the electrophoretic protein analysis and allows reliable separation of sensitive samples under controlled temperature conditions.
- Eco-Mini Divider-Plates: with increased sample throughput, the gel capacity can easily increased from 2 to 4 gels
- Efficient cooling (buffer tank EBC) ensures high separation resolution
- Extensive accessories offer individual adaptations to your laboratory needs
Products
Biometra Eco-Maxi EB for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-401
Biometra Eco-Maxi EBC for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-403
Biometra Eco-Maxi system EB for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-400
Biometra Eco-Maxi system EBC for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-402
Biometra Eco-Mini E for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-101
Biometra Eco-Mini EB for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-103
Biometra Eco-Mini EBC for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-105
Biometra Eco-Mini system E for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-100
Biometra Eco-Mini system EB for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-102
Biometra Eco-Mini system EBC for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-104
Technical Data
Max. sample throughput |
Number of gels |
Glass plates with fixed spacers |
Modular system |
Max. buffer temperature |
Buffer volume |
Gel casting system |
Max. current/electrophoresis |
Electrode material |
Max. voltage/electrophoresis |
Max. current/blotting |
Max. voltage/blotting |
Max. power/blotting |
Max. power/electrophoresis |
Dimensions glass plate (W x D, cm) |
Dimensions gel (W x D, cm) |
Spacer thickness (mm) |
Dimension (width x depth x height) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Biometra Eco-Maxi EB for 2 gels (1.0 mm thick), w/o casting stand |
2 x 30 | 2 | Yes | Yes | 50 °C | 2180 mL | Electrophoresis module + casting stand | 125 mA | Platinum | 400 V | 1000 mA | 60 V | 60 W | 50 W | 21.0 cm x 20.0 cm | 19.4 cm x 18.5 cm | 1 | |
|
Biometra Eco-Maxi EBC for 2 gels (1.0 mm thick), w/o casting stand |
2 x 30 | 2 | Yes | Yes | 50 °C | 6100 mL | 250 mA | Platinum | 400 V | 1000 mA | 100 V | 130 W | 100 W | 21.0 x 20.0 | 19.4 x 18.5 | 1 | 325 mm x 150 mm x 400 mm | |
|
Biometra Eco-Maxi system EB for 2 gels (1.0 mm thick) |
2 x 30 | 2 | Yes | Yes | 50 °C | 5400 mL | Electrophoresis module + casting stand | 125 mA | Platinum | 400 V | 1000 mA | 60 V | 60 W | 50 W | 21.0 cm x 20.0 cm | 19.4 cm x 18.5 cm | 1 | 325 mm x 150 mm x 385 mm |
|
Biometra Eco-Maxi system EBC for 2 gels (1.0 mm thick) |
2 x 30 | 2 | Yes | Yes | 50 °C | 6100 mL | Electrophoresis module + casting stand | 250 mA | Platinum | 400 V | 1000 mA | 100 V | 130 W | 100 W | 21.0 x 20.0 | 19.4 x 18.5 | 1 | 325 mm x 150 mm x 400 mm |
|
Biometra Eco-Mini E for 2 gels (1.0 mm thick), w/o casting stand |
4 x 15 | 1 - 2 (4 with divider plates) | Yes | Yes | 50 °C | 1.580 mL | Electrophoresis module + casting stand | 50 mA | Platinum | 200 V | 300 mA | 100 V | 30 W | 10 W | 11.0 x 10.0 | 9.4 x 8.0 | 1 | 210 mm x 150 mm x 220 mm |
|
Biometra Eco-Mini EB for 2 gels (1.0 mm thick), w/o casting stand |
4 x 15 | 2 (4 with divider plates) | Yes | Yes | 50 °C | 2.180 mL | Electrophoresis module + casting stand | 50 mA | Platinum | 200 V | 300 mA | 100 V | 30 W | 10 W | 11.0 x 10.0 | 9.4 x 8.0 | 1 | 210 mm x 150 mm x 250 mm |
|
Biometra Eco-Mini EBC for 2 gels (1.0 mm thick), w/o casting stand |
4 x 15 | 1 - 2 (4 with divider plates) | Yes | Yes | 50 °C | 2.180 mL | Electrophoresis module + casting stand | 50 mA | Platinum | 200 V | 300 mA | 100 V | 30 W | 10 W | 11.0 x 10.0 | 9.4 x 8.0 | 1 | 210 mm x 150 mm x 265 mm |
|
Biometra Eco-Mini system E for 2 gels (1.0 mm thick) |
4 x 15 | 1 - 2 (4 with divider plates) | Yes | Yes | 50 °C | 1.580 mL | Electrophoresis module + stand | 50 mA | Platinum | 200 V | 300 mA | 100 V | 30 W | 10 W | 11.0 x 10.0 | 9.4 x 8.0 | 1 | 210 mm x 150 mm x 220 mm |
|
Biometra Eco-Mini system EB for 2 gels (1.0 mm thick) |
4 x 15 | 1 - 2 (4 with divider plates) | Yes | Yes | 50 °C | 2.180 mL | Electrophoresis module + casting stand | 50 mA | Platinum | 200 V | 300 mA | 100 V | 30 W | 10 W | 11.0 x 10.0 | 9.4 x 8.0 | 1 | 210 mm x 150 mm x 250 mm |
|
Biometra Eco-Mini system EBC for 2 gels (1.0 mm thick) |
4 x 15 | 1 - 2 (4 with divider plates) | Yes | Yes | 50 °C | 2.180 mL | Electrophoresis module + casting stand | 50 mA | Platinum | 200 V | 100 mA | 100 V | 30 W | 10 W | 11.0 x 10.0 | 9.4 x 8.0 | 1 | 210 mm x 150 mm x 265 mm |
Order Information
Order number |
Description |
|---|---|
| 846-017-401 | Biometra Eco-Maxi EB w/o casting stand |
| 846-017-403 | Biometra Eco-Maxi EBC for 2 gels (1.0 mm thick), w/o casting stand |
| 846-017-400 | Biometra Eco-Maxi system EB for 2 gels (1.0 mm thick) |
| 846-017-402 | Biometra Eco-Maxi system EBC for 2 gels (1.0 mm thick) |
| 846-017-101 | Biometra Eco-Mini E for 2 gels (1.0 mm thick), w/o casting stand |
| 846-017-103 | Biometra Eco-Mini EB for 2 gels (1.0 mm thick), w/o casting stand |
| 846-017-105 | Biometra Eco-Mini EBC for 2 gels (1.0 mm thick), w/o casting stand |
| 846-017-100 | Biometra Eco-Mini system E for 2 gels (1.0 mm thick) |
| 846-017-102 | Biometra Eco-Mini system EB for 2 gels (1.0 mm thick) |
| 846-017-104 | Biometra Eco-Mini system EBC for 2 gels (1.0 mm thick) |
Accessories
| Comb, 1.0 mm, 12 wells for Eco-Maxi | 846-017-440 |
| Comb, 1.0 mm, 19 wells, MTP for Eco-Maxi | 846-017-441 |
| Comb, 1.0 mm, 25 wells for Eco-Maxi | 846-017-442 |
| Comb, 1.0 mm, 30 wells for Eco-Maxi | 846-017-443 |
| Prep. Comb, 1.0 mm, 1+2 wells for Eco-Maxi | 846-017-444 |
| Comb, 1.5 mm, 25 wells for Eco-Maxi | 846-017-452 |
| Comb, 0.75 mm, 12 wells for Eco-Maxi | 846-017-430 |
| Comb, 0.75 mm, 19 wells, MTP for Eco-Maxi | 846-017-431 |
| Comb, 1.5 mm, 19 wells, MTP for Eco-Maxi | 846-017-451 |
| Comb, 0.75 mm, 25 wells for Eco-Maxi | 846-017-432 |
| Comb, 0.75 mm, 30 wells for Eco-Maxi | 846-017-433 |
| Comb, 1.5 mm, 30 wells for Eco-Maxi | 846-017-453 |
| Prep. Comb, 0.75 mm, 3 wells for Eco-Maxi | 846-017-434 |
| Prep. Comb, 1.5 mm, 1+2 wells for Eco-Maxi | 846-017-454 |
| Dummy plate for Eco-Maxi | 846-017-426 |
| Electroph. Module for Eco-Maxi | 846-017-475 |
| Gel casting stand for up to 2 gels for Eco-Maxi | 846-017-480 |
| Glass plate with 0.75 mm spacer for Eco-Maxi | 846-017-421 |
| Glass plate with 1.0 mm spacer for Eco-Maxi | 846-017-420 |
| Glass plate with 1.5 mm spacer for Eco-Maxi | 846-017-423 |
| Comb, 1.5 mm, 12 wells for Eco-Maxi | 846-017-450 |
| Notched glass plate for Eco-Maxi | 846-017-425 |
| Blot module for 2 gels for Tankblot Eco-Maxi | 846-018-405 |
| Blotting cassette for Tankblot Eco-Maxi | 846-018-411 |
| Foam pads for Tankblot Eco-Maxi | 846-018-413 |
| Bigfoot lid for Eco-Mini | 846-017-172 |
| Prep. Comb, 1.0 mm, 1+2 wells for Eco-Mini | 846-017-144 |
| Prep. Comb, 1.5 mm, 1+2 wells for Eco-Mini | 846-017-154 |
| Divider plate with 0.75 mm spacer for Eco-Mini | 846-017-184 |
| Glass plate with 1.5 mm spacer for Eco-Mini | 846-017-185 |
| Divider plate with 1.0 mm spacers for Eco-Mini | 846-017-183 |
| Divider plate set, 1.0 mm for Eco-Mini | 846-017-187 |
| Divider plate set, 1.5 mm for Eco-Mini | 846-017-189 |
| Divider plate set, 0.75 mm for Eco-Mini | 846-017-188 |
| Dummy plate for Eco-Mini | 846-017-127 |
| Electrophor. Module for Eco-Mini | 846-017-175 |
| Gel casting stand for up to 2 gels for Eco-Mini | 846-017-180 |
| Glass plate with 0.75 mm spacer for Eco-Mini | 846-017-121 |
| Glass plate with 1.0 mm spacer for Eco-Mini | 846-017-120 |
| Glass plate with 1.5 mm spacer for Eco-Mini | 846-017-122 |
| Comb, 0.75 mm, 10 wells for Eco-Mini | 846-017-131 |
| Comb, 1.0 mm, 10 wells for Eco-Mini | 846-017-141 |
| Comb, 1.5 mm, 10 wells for Eco-Mini | 846-017-151 |
| Comb, 0.75 mm, 12 wells for Eco-Mini | 846-017-132 |
| Comb, 1.0 mm, 12 wells for Eco-Mini | 846-017-142 |
| Comb, 1.5 mm, 12 wells for Eco-Mini | 846-017-152 |
| Comb, 0.75 mm, 15 wells for Eco-Mini | 846-017-133 |
| Comb, 1.0 mm, 15 wells for Eco-Mini | 846-017-143 |
| Comb, 0.75 mm, 9 wells, MTP for Eco-Mini | 846-017-130 |
| Comb, 1.5 mm, 15 wells for Eco-Mini | 846-017-153 |
| Comb, 1.0 mm, 9 wells, MTP for Eco-Mini | 846-017-140 |
| Comb, 1.5 mm, 9 wells, MTP for Eco-Mini | 846-017-150 |
| Prep. Comb, 0.75 mm, 3 wells for Eco-Mini | 846-017-134 |
| Notched glass plate for Eco-Mini | 846-017-125 |
| Buffer tank E, without cooling for Eco-Mini | 846-017-169 |
| Buffer tank EBC, with cooling for Eco-Mini | 846-017-171 |
| Blot module for 4 Mini-gels for Tankblot Eco-Mini | 846-018-105 |
| Blotting cassette for Tankblot Eco-Mini | 846-018-111 |
| Foam pads for Tankblot Eco-Mini | 846-018-113 |
