Agarose Gel Electrophoresis

Agarose gel electrophoresis is a well-established method for separating and analyzing nucleic acids, particularly DNA and RNA fragments. The technique relies on the movement of charged molecules through a gel matrix under the influence of an electric field. Because nucleic acids carry a net negative charge due to their phosphate backbone, they migrate toward the positively charged anode when an electric current is applied. Separation is based on fragment size: Smaller fragments move more quickly through the gel, while larger ones travel more slowly and are retained to a greater extent.

The method has become a standard technique in molecular biology and is used in a wide range of laboratory applications, including the analysis of PCR products, verification of restriction digests, assessment of RNA integrity, and preparation of DNA fragments for downstream experiments. In addition to its broad use, agarose gel electrophoresis is valued for its ease of use, low cost, and high reproducibility.

Comparison with Other Electrophoresis Techniques
Compared to polyacrylamide gel electrophoresis (PAGE), which is used for high-resolution separation of small DNA or protein fragments, agarose gel electrophoresis is easier to handle and particularly well suited for larger nucleic acid fragments. It also requires fewer toxic reagents, as agarose does not rely on polymerization-promoting chemicals like polyacrylamide does.

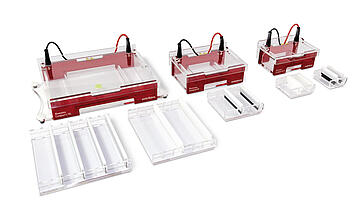

By adjusting the concentration of agarose, the resolution can be optimized for different fragment sizes. In addition, modern electrophoresis systems—available in compact formats or as wide multi-well versions—enable efficient and reproducible analysis of a large number of samples. Systems such as the Biometra Compact XS–XL or Biometra Compact Multi-Wide offer flexible adaptation to various routine laboratory requirements.

Preparation and Properties of Agarose Gel

What is agarose?

Agarose is a naturally occurring polysaccharide derived from certain species of red algae, primarily from the genera Gelidium and Gracilaria. Chemically, agarose consists of repeating units of agarobiose that form linear chains. This structure makes it ideal for producing gels with a defined pore size.

When heated in a suitable buffer solution, agarose melts and forms a three-dimensional network structure as it cools. This matrix contains pores through which nucleic acid molecules migrate during electrophoresis. Gel formation occurs through spontaneous gelling without the need for chemical cross-linking agents, making the method especially user-friendly.

Gel Concentration and Pore Size

The concentration of agarose in the gel affects the pore size and, in turn, the separation characteristics:

  • Higher agarose concentrations (e.g., 2% or more) result in smaller pores, making them ideal for separating smaller nucleic acid fragments. These concentrations are typically used for small DNA fragments ranging from approximately 100 to 1,000 base pairs.
  • Lower agarose concentrations (e.g., 0.7% or less) create larger pores and are suitable for separating larger DNA fragments. Fragments between 5 and 20 kbp can be effectively resolved in such gels.

By carefully selecting the agarose concentration, the separation can be tailored to specific needs. In addition, specialized types of agarose with even finer or coarser pores are available for specific applications.

Buffer Solutions for Gel Electrophoresis

The choice of buffer has a direct impact on the migration speed of nucleic acids and the resolution of separation. The two most commonly used buffer solutions are:

  • TAE buffer (Tris-acetate-EDTA): Offers high DNA mobility, resulting in faster migration. It is often used for applications that require short run times. However, it tends to become depleted during longer runs, so refilling may be necessary.
  • TBE buffer (Tris-borate-EDTA): Provides better buffering capacity and ensures more stable separation, especially during longer runs. The borate component helps stabilize the pH balance, though it can slow down DNA migration.

The choice of the appropriate buffer depends on the desired resolution, run time, and the intended downstream application of the nucleic acids.

Staining Methods and Detection

To visualize the separated nucleic acids, they are stained after electrophoresis. Various staining methods are available, differing in sensitivity, safety, and detection capabilities:

  • Ethidium bromide (EtBr): Traditionally one of the most commonly used dyes due to its strong fluorescence when intercalating between DNA base pairs. It is visualized under UV light but is mutagenic and requires special safety precautions.
  • Alternative dyes: Modern alternatives such as SYBR Green, GelRed, or SYBR Safe offer comparable or even higher sensitivity than ethidium bromide, while being less toxic. Many of these can be excited with blue light, which reduces damage to the nucleic acids.

Visualization can be performed using UV light or blue light, depending on the staining method used. Blue light systems are especially advantageous for sensitive applications, as UV radiation can damage DNA—a potential issue for downstream experiments such as cloning.

By combining an optimal gel concentration with the right buffer and an appropriate detection method, agarose gel electrophoresis can be tailored to suit a wide range of molecular biology applications.

Methodology

Agarose gel electrophoresis is carried out in several steps that enable the precise separation and analysis of nucleic acids.

  1. Gel preparation: Agarose is dissolved at a defined concentration in a buffer solution and liquefied by heating. It is then poured into a casting tray, where a comb is inserted to create sample wells. Once the gel has solidified, the comb is removed, leaving uniform pockets for sample loading.
  2. Sample loading: Nucleic acid samples are mixed with a special loading buffer that contains both a density agent and tracking dyes to visually monitor the progress of electrophoresis. In addition, a molecular weight marker with defined fragment sizes is loaded to allow size estimation of the sample fragments.
  3. Running the electrophoresis: The gel is placed in an electrophoresis chamber and covered with buffer. An electric voltage is then applied to drive the DNA fragments through the gel. Voltage and run time are critical factors that influence separation quality. Systems like the Biometra Compact Multi-Wide ensure uniform voltage distribution and consistent migration behavior for reproducible results.
  4. Band pattern analysis: After electrophoresis is complete, the nucleic acids are visualized using a staining method and analyzed under UV or blue light. By comparing the sample bands to the molecular weight marker, the size of the DNA fragments can be determined.

Factors Influencing Separation

  • Agarose concentration affects the pore size of the gel and thus the ability to separate fragments of specific lengths.
  • Electrophoresis conditions such as applied voltage and run time influence the migration speed of the fragments.
  • DNA concentration in the sample and the length of the fragments affect the visibility

Modern electrophoresis systems such as the Biometra Compact series allow for precise control of these parameters, ensuring reproducible results.

Applications of Agarose Gel Electrophoresis

Agarose gel electrophoresis is a widely used method in molecular biology and diagnostics. Its versatility allows it to be applied across a range of fields—from quality control in research to clinical diagnostics. Thanks to its ease of use and high reproducibility, it remains an indispensable tool in laboratories around the world.

Quality Control and Size Determination of Nucleic Acids

One of the most common applications of agarose gel electrophoresis is the assessment of nucleic acid samples in terms of quality and size. This method is used to analyze PCR products, DNA restriction digests, or RNA samples before proceeding with further molecular biology experiments. Scientists use it, for example, to confirm whether a DNA extraction was successful or whether a PCR amplification yielded the expected fragments. The band patterns produced by electrophoresis provide precise information about fragment lengths and potential impurities.

Cloning and Genetic Engineering

In modern genetic engineering, agarose gel electrophoresis is an essential tool. It enables the analysis of DNA fragments after restriction digestion or PCR amplification to ensure that the desired sequences are suitable for cloning. Before transformation into bacteria or other host organisms, gel electrophoresis can be used to extract and purify specific DNA fragments from the gel. This is a critical step in the cloning process, as the purity and integrity of the DNA directly affect the success of genetic modifications.

Diagnostic Applications

Agarose gel electrophoresis is also used in medical diagnostics, particularly for detecting genetic mutations or infectious pathogens. In human genetics, the method is employed to identify altered DNA sequences associated with hereditary diseases. It can also be used to detect viral genomes, for example in the identification of hepatitis or HIV infections. Electrophoresis offers a fast and cost-effective analysis method that is often used as a confirmatory test for other diagnostic procedures.

Comparison with Alternative Methods

In addition to agarose gel electrophoresis, which has become a standard method in many laboratories, there are alternative high-throughput techniques. One such method is capillary electrophoresis, which uses thin glass capillaries instead of a solid gel matrix. This approach is characterized by a high degree of automation and very high resolution. Nevertheless, the classic gel-based method remains a preferred technique due to its simplicity and adaptability to a wide range of molecular biology applications.

Support from Modern Electrophoresis Systems

Modern electrophoresis systems, such as the Biometra Compact XS–XL or Biometra Compact Multi-Wide from Analytik Jena, offer optimized solutions for agarose gel electrophoresis. These systems provide precise voltage control, even heat distribution, and user-friendly operation. Especially in high-throughput laboratories, these instruments are invaluable, enabling the parallel analysis of multiple samples and thereby increasing efficiency in molecular biology research and diagnostics.
