Biometra Compact XS/S, M, L/XL Specially Designed for Daily Laboratory Work

  • Wide variety of chamber formats
  • Sophisticated chamber design for Easy and safe handling
  • UV-transparent gel trays

The agarose gel electrophoresis family convinces with its robust and user-friendly design in daily laboratory routine and offers the suitable solution for small to high sample throughput via the different chamber sizes.

Your Reliable Partner in Everyday Laboratory Work

The Biometra Compact series consist of five models for a different sample throughput. The innovative concept of ergonomic design, simple operation and outstanding performance has been proven one´s worth many times, making the Compact family the perfect choice for manual nucleic acid analysis by agarose gel electrophoresis.

  • Compact XS / S for mini gels with gel tray XS or S
  • Compact M for midi gels with gel tray M
  • Compact L / XL for maxi gels with gel tray L or XL

Download Product Information

Nucleic Acid Analysis in Perfection

The Biometra Compact family was developed for professional measurements and analysis of nucleic acids in research and routine laboratories. Due to their excellent resolution, the horizontal electrophoresis systems offer a greater precision and thus better data interpretation accuracy, even with small nucleic acid fragments.

Well suited for daily use, the Biometra Compact systems are characterized by a high-quality acrylic construction, a unique bigfoot safety lid, and the use of durable components such as corrosion protected platinum electrodes and gold-coated plugs. This guarantees maximum durability and reliability in all applications.

  • Large variety of chamber formats
  • High-quality components and stable design for lasting reliability
  • Reliable operational safety
  • Simplified handling due to unique gel casting systems
  • Extensive accessories for maximum flexibility

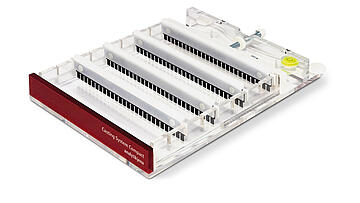

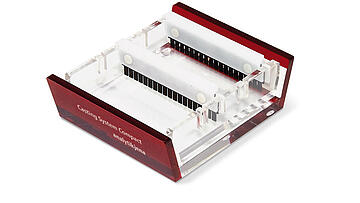

In terms of speed and ease of use, the innovative gel casting systems set new standards. Specially developed "plug-and-cast" gel casting systems for the gel tray sizes XS, S and M guarantee leak-proof casting of gels in seconds: Insert gel tray - press down lightly with your hand - done! For the Maxi gels L and XL, an easy-to-use gel casting system with adjustable feet and a leveling device is available.

Products

Biometra Compact L for gel size 23.9 cm x 20.0 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-300

Biometra Compact L system for gel size 23.9 cm x 20.0 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-399

Biometra Compact M for gel size 12.4 cm x 14.5 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-200

Biometra Compact M system for gel size 12.4 cm x 14.5 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-299

Biometra Compact S for gel size 8.2 cm x 10.5 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-100

Biometra Compact S system for gel size 8.2 cm x 10.5 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-199

Biometra Compact XL for gel size 23.9 cm x 25.0 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-400

Biometra Compact XL system for gel size 23.9 cm x 25.0 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-499

Biometra Compact XS for gel size 8.2 cm x 7.1 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-000

Biometra Compact XS system for gel size 8.2 cm x 7.1 cm

The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.

Order number: 846-025-099

Technical Data

Max. power

Max. current

Leveling

Gel size (W x D, cm)

Max. buffer temperature

Buffer volume

Gel casting system

Max. capacity

Electrode distance

Max. voltage

Dimension (width x depth x height)

Biometra Compact L for gel size 23.9 cm x 20.0 cm
846-025-300

30 W 500 mA Yes 23.9 cm x 25.1 cm 50 °C 1660 mL Gel casting system with adjustable feet and leveling 312 Samples with 6 combs 34 cm 250 V 294 mm x 382 mm x 112 mm

Biometra Compact L system for gel size 23.9 cm x 20.0 cm
846-025-399

30 W 500 mA Yes 23.9 cm x 20.0 cm 50 °C 1660 mL Plug & Cast 312 Samples with 6 combs 34 cm 250 V 294 mm x 382 mm x 112 mm

Biometra Compact M for gel size 12.4 cm x 14.5 cm
846-025-200

20 W 250 mA No 12.4 cm x 14.5 cm 50 °C 580 mL Plug & Cast 100 samples with 4 combs 21.5 cm 180 V 177 mm x 258 mm x 109 mm

Biometra Compact M system for gel size 12.4 cm x 14.5 cm
846-025-299

20 W 250 mA No 12.4 cm x 14.5 cm 50 °C 580 mL Plug & Cast 100 Samples with 4 combs 21.5 cm 180 V 177 mm x 258 mm x 109 mm

Biometra Compact S for gel size 8.2 cm x 10.5 cm
846-025-100

12 W 200 mA No 8.2 cm x 10.6 cm 50 °C 360 mL Plug & Cast 48 Samples with 3 combs 17 cm 180 V 136 mm x 216 mm x 106 mm

Biometra Compact S system for gel size 8.2 cm x 10.5 cm
846-025-199

12 W 200 mA No 8.2 cm x 10.5 cm 50 °C 360 mL Plug & Cast 48 Samples with 3 combs 17 cm 180 V 136 mm x 216 mm x 106 mm

Biometra Compact XL for gel size 23.9 cm x 25.0 cm
846-025-400

30 W 500 mA Yes 23.9 cm x 25.1 cm 50 °C 1660 mL Gel casting with adjustable feet and leveling 416 Samples with 8 combs 34 cm 250 V 294 mm x 382 mm x 112 mm

Biometra Compact XL system for gel size 23.9 cm x 25.0 cm
846-025-499

30 W 500 mA Yes 23.9 cm x 25.1 cm 50 °C 1660 mL Gel casting system with adjustable feet and leveling 416 Samples with 8 combs 34 cm 250 V 294 mm x 382 mm x 112 mm

Biometra Compact XS for gel size 8.2 cm x 7.1 cm
846-025-000

12 W 200 mA No 8.2 cm x 7.1 cm 50 °C 360 mL Plug & Cast 32 Samples with 2 combs 17 cm 180 V 136 mm x 216 mm x 106 mm

Biometra Compact XS system for gel size 8.2 cm x 7.1 cm
846-025-099

12 W 200 mA No 8.2 cm x 7.1 cm 50 °C 360 mL Plug & Cast 32 Samples with 2 combs 17 cm 180 V 136 mm x 216 mm x 106 mm

Order Information

Order number

Description

846-025-300 Biometra Compact L for gel size 23.9 x 20.0 cm
846-025-399 Biometra Compact L system for gel size 23.9 x 20.0 cm, incl. gel casting system
846-025-200 Biometra Compact M for gel size 12.4 cm x 14.5 cm
846-025-299 Biometra Compact M system for gel size 12.4 x 14.5 cm, incl. gel casting system
846-025-100 Biometra Compact S for gel 8.2 cm x 10.5 cm
846-025-199 Biometra Compact S system for gel 8.2 x 10.5 cm, incl. gel casting system
846-025-400 Biometra Compact XL for gel size 23.9 x 25.0 cm
846-025-499 Biometra Compact XL system for gel size 23.9 x 25.0 cm, incl. gel casting system
846-025-000 Biometra Compact XS for gel 8.2 x 7.1 cm
846-025-099 Biometra Compact XS system for gel 8.2 x 7.1 cm, incl. gel casting system

Accessories

Comb 1.0 mm 22 wells, L/XL for Compact L/XL 846-025-301
Comb 1.0 mm 36 wells, L/XL for Compact L/XL 846-025-303
Comb 1.0 mm 42 wells, L/XL for Compact L/XL 846-025-304
Comb 1.0 mm 52 wells, L/XL for Compact L/XL 846-025-305
Comb 1.0 mm 26wells MTP,L / XL for Compact L/XL 846-025-302
Prep. comb 1.5 mm 1 + 2 wells for Compact L/XL 846-025-316
Comb 1.5 mm 22 wells, L/XL for Compact L/XL 846-025-311
Comb 1.5 mm 26 wells, L/XL for Compact L/XL 846-025-312
Comb 1.5 mm 36 wells, L/XL for Compact L/XL 846-025-313
Comb 1.5 mm 42 wells,L/XL for Compact L/XL 846-025-314
Comb 1.5 mm 52 wells MTP, L/XL for Compact L/XL 846-025-315
Gel casting system L/XL for Compact L/XL 846-025-310
Gel tray 23.9 cm x 20.0 cm, L for Compact L/XL 846-025-320
Gel tray 23.9 cm x 25.0 cm, XL for Compact L/XL 846-025-321
Loading strips L/XL for Compact L/XL, adhesive 846-025-306
Comb 1.0 mm 11 wells, M for Compact M 846-025-201
Comb 1.0 mm 13 wells MTP, M for Compact M 846-025-202
Comb 1.0 mm 18 wells, M for Compact M 846-025-203
Comb 1.0 mm 21 wells, M for Compact M 846-025-204
Comb 1 mm 25 well MTP, M for Compact M 846-025-205
Prep. comb 1.5 mm 1 + 2 wells for Compact M 846-025-216
Comb 1.5 mm 11 wells, M for Compact M 846-025-211
Comb 1.5 mm 13 wells MTP, M for Compact M 846-025-212
Comb 1.5 mm 18 wells, M for Compact M 846-025-213
Comb 1.5 mm 21 wells, M for Compact M 846-025-214
Comb 1.5 mm 25 wells MTP, M for Compact M 846-025-215
Gel casting system M for Compact M 846-025-210
Loading strips M for Compact M, adhesive 846-025-206
Gel tray 12.4 cm x 14.5 cm, M for Compact M 846-025-221
Comb 1.0 mm 11 wells XS/S for Compact XS/S 846-025-002
Comb 1.0 mm 13 wells, XS/S for Compact XS/S 846-025-003
Comb 1.0 mm 8 wells MTP, XS/S for Compact XS/S 846-025-001
Comb 1.5 mm 11 wells, XS/S for Compact XS/S 846-025-012
Comb 1.5 mm 13 wells, XS/S for Compact XS/S 846-025-013
Comb 1.5 mm 16 wells MTP, XS/S for Compact XS/S 846-025-014
Comb 1.5 mm 8 wells MTP, XS/S for Compact XS/S 846-025-011
Comb 1 mm 16 wells MTP, XS/S for Compact XS/S 846-025-004
Gel casting system S for Compact S 846-025-110
Gel casting system XS for Compact XS/S 846-025-010
Gel tray 8.2 cm x 10.5 cm XS/S for Compact XS/S 846-025-021
Gel tray 8.2 cm x 7.1 cm, XS/S for Compact XS/S 846-025-020
Loading strips XS/S for Compact XS/S, adhesive 846-025-006
Prep. comb 1.5 mm 1 + 2 wells for Compact XS/S 846-025-015

Downloads

Brochure Biometra Compact Family (EN)
Broschüre Biometra Compact Familie (DE)
Quick Guide Compact Family (EN)
