Hydride Systems Extended Application of AAS

  • Modular hydride systems for the analysis of mercury and hydride-forming elements
  • Application-specific batch or flow injection setup
  • Mercury trace analysis due to additional enrichment
  • Compliant with DIN, ISO, EPA and ASTM methods for mercury and hydride testing

Cold Vapor Technology to Determine Mercury and Hydride Forming Elements

  • Flow and batch mode for high throughput and low detection limits
  • Amalgamation module for the best detection limits in mercury testing
  • Color-coded tubing connections for simple, unambiguous replacement of consumables
  • Optimized gas-liquid paths and dedicated material selection to reduce contamination and memory-effects
  • Intelligent valve control for short measurement and rinsing times

Trace Analysis for Any Demand

The hydride series as additional accesory for the AAS include different systems for all requirements from the simplest application with the HS 50, the semi-automated batch mode system HS 55, well suited for difficult sample matrices, up to the fully automated sample preparation and hydride forming with the flow injection system HS 60. Lowest detection limits are achieved for mercury and the hydride forming elements such as antimony, arsenic, and selenium in flame and graphite furnace mode with various upgrade options.

  • Amalgamation mode for ultra trace analysis of mercury
  • HydrEA upgrade Kit - for ultra trace analysis of hydride elements in furnace mode

Products

Hg/Hydrid-System HS 55 - Batch mode system for Hg and hydride forming elements

Reliable results even for demanding samples

Order number: 810-60404-2

Hg/Hydride System HS 50 - Manual hydride system with flame heated quartz cell atomizer

Cost-effective Hydride system for simple application

Order number: 810-60149-2

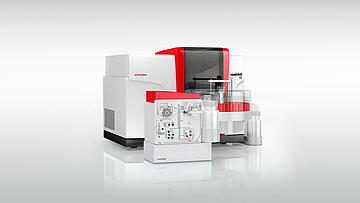

Hg/Hydride System HS 60 - Flow injection system for Hg and hydride forming elements

Fully automated sample handling for high sample troughput in routine work

Order number: 810-60402-2

Technical Data

Space requirement (width x depth x height)

Hg/Hydrid-System HS 55 - Batch mode system for Hg and hydride forming elements
810-60404-2

 360 mm x 280 mm x 370 mm

Hg/Hydride System HS 50 - Manual hydride system with flame heated quartz cell atomizer
810-60149-2

 270 mm x 190 mm x 270 mm

Hg/Hydride System HS 60 - Flow injection system for Hg and hydride forming elements
810-60402-2

 360 mm x 240 mm x 370 mm

Order Information

Order number

Description
810-60404-2 Hg/Hydrid-System HS 55 Batch mode system for Hg and hydride forming elements
810-60149-2 Hg/Hydride System HS 50 Manual hydride system with flame heated quartz cell atomizer
810-60402-2 Hg/Hydride System HS 60 Flow injection system for Hg and hydride forming elements

Accessories

Hg cell (tulip) - for improved Hg sensitivity 810-60051-0
Hg Plus Upgrade Module for Hg enrichment, extension of Hg/Hydride-Systems HS 55 and HS 60 810-60406-0
HydrEA Upgrade Kit for coupling hydride systems HS 55 and HS 60 with graphite furnace AAS 810-60509-0

Consumables

407-170.052 Intake tubing acid and reducer - MFA (complete), for mercur
407-170.097 Amalgamation unit with heating coil for Hg Plus enrichment unit of AAS HS/mercur
407-10-1700-102-11 Bottle acid, 1L for AAS hydride systems
407-10-1700-101-11 Bottle reducing agent, 1L for ICP/AAS hydride systems
407-10-1700-601-10 Cannula HydrEA technique (long)
407-170.543 Drying tube Hg for AAS hydride systems
407-170.548 Drying-tube hydrid for AAS hydride systems
407-10-1700-077-11 Gas tube set HydrEA for AAS hydride systems
407-178.147 Jumper plug HydrEA for AAS hydride systems
702-A54.012 Quartz cell without windows for AAS hydride systems HS 55, HS 60
702-A65.021 reaction beaker PTFE with conical bottom, flange seal, for HS 55
407-10-1700-100-25 Set connection tubes Hg Plus for enrichment unit, AAS Hydride systems
407-170.600 Set window with ring for AAS hydride systems HS 55/HS 60
810-60508-0 Consumables Set H for Hydride Systems
407-10-1700-087-11 cell tube for AAS hydride system HS 55
407-170.537 Connection tube cell for AAS hydride systems
407-170.544 Coupler for drying hose for AAS hydride systems
407-170.590 Gas liquid separator for AAS hydride systems
407-10-1700-095-11 pump tube reducing agent for AAS hydride systems
407-10-1700-102-25 Set connection tubes for AAS hydride system (HS 60)
407-10-1700-101-25 Set of pump tubes for AAS hydride system (HS 60)

Downloads

EU Declaration of Conformity HS 55 HS 60
Operating Manual HS 50 (DE)
Operating Manual HS 50 (EN)
Operating Manual HS 50 (RU)
Operating Manual HS 55 (DE)
Operating Manual HS 55 (EN)
Operating Manual HS 55 (ES)
Operating Manual HS 55 (FR)
Operating Manual HS 60 (DE)
Operating Manual HS 60 (EN)
Operating Manual HS 60 (ES)
Operating Manual HS 60 (FR)
