AOX Sampler Series The Easiest POX, EOX, TOX Determination

  • Extension for wider application spectra at any time
  • Unique flexibility due to variable application optimized supply systems
  • High precision by intelligent sensors and innovative hardware features
  • Maximum safety and minimized maintenance effort in horizontal applications with boat supply

Flexible Supply Systems for POX, EOX, and TOX Applications

The innovative flame sensor technology ensures fastest soot-free boat combustion available on the market. Optimum analysis results, independant of sample quantity and sample matrix are easily reached by any operator.

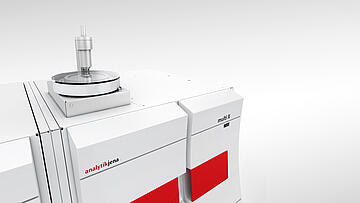

Autoinjector AI

Intelligent constant rate syringe drive for the safe, semi-automatic injection of liquid samples in the vertical operation mode. Thanks to one-step filling it is possible to reach dosing precision of an autosampler, independant of the operator. The autoinjector is equipped with a 100 µl syringe to enable best results, even for analysis in the trace range. The integrated sensors automatically check for proper filling of the syringe, thus eliminates main sources of operation mistakes. The autoinjector is the ideal solution for small sample numbers resp. in case EOX analysis is seldom done.

  • Automatic recognition of syringe and correct filling – elimination of user mistakes
  • Software controlled, constat injection rates for controlled, complete combustion
  • Easy software-guided operation
  • Resource saving – no additional power supply, extremely light and small design

ABD Automatic Boat Drive

The ABD enables AOX acc. column and batch methode as well as EOX and TOX analysis in the horizontal operation mode. Therefor the samples are introduced either manually or automatically, by aid of the autoX112 autosampler, into quartz sample boats. The ABD transfers the loaded quartz sample boats fully automated into the combustion furnace. The process can be adapted to the specific needs of samples resp. user preferences by flexible programming of up to 3 waiting positions and adaptation of transfer speed, if required. The optional available flame sensor enables a safe and optimized combustion process of any organic matrix, independant if solid or liquid. The ABD enables automated supply of AOX columns and enriched charcoal together with polycarbonate membrane filters (batch method), solid samples up to 110 mg, up to 100 μL EOX extracts or other organic liquids. The flame sensor is required in case of analysis of pure organic as well as vigorously reacting sample matrices (e.g. EOX extracts, polymer waste, used oil etc.).

  • Cooled sample port – enables analysis of EOX extracts and other light volatile liquids
  • High-performance Peltier cooling for sample boats – minimum idletime in liquids applications
  • Automatic port opening and pressure sensors – high operation safety, maximum operation comfort in solids & AOX applications
  • Optional flame sensor technology – Intelligent fully automatic adaptation of the combustion process to the specific needs of any matrix component - remarkably reduced downtime and maintenance effort, quantitative digestion even for huge quantities, very reactive samples or unknown matrices
  • Safe and easy operation – very suited for shift work and analysis of unknown samples
  • Free choice of ABD operation mode allows time and matrix optimized analysis with streamlined throughput
  • Minimum maintenance – AOX column and ash is easily removed together with the sample boat manually resp. fully automatically if autoX112 is used.

POX Module

The POX module is an optional accessory for multi X 2500 systems. It enables the determination of POX – purgeable organic halogen compounds – in wastewater and sludge samples. The samples are purged out automatically, a water bath is used to support this process.

Products

Autoinjector - with syringe

Semi-automatic injector for small series of liquid samples

Order number: 450-126.422

Automatic Boat Drive - ABD without flame sensor technology

Multi-matrix sample supply system for analysis of EOX and AOX samples acc. column and batch method and inert solids and liquids

Order number: 450-126.416

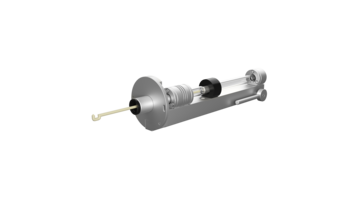

MBD - manual boat drive

Combine various sample supply systems to extend the application range for the multi X 2500 analyzer for applications like POX, EOX or TOX

Order number: 450-126.423

POX kit

Accessory for the determination of POX contents in vertical operation mode

Order number: 450-889.620

Pushing tool AOX column method

Tool for manual direct dosing of charcoal for AOX determination acc. column method

Order number: 450-889.611

Technical Data

Dimension (width x depth x height)

Autoinjector - with syringe
450-126.422

80 mm x 80 mm x 190 mm

Automatic Boat Drive - ABD without flame sensor technology
450-126.416

520 mm x 500 mm x 210 mm

MBD - manual boat drive
450-126.423

500 mm x 80 mm x 80 mm

Order Information

Order number

Description

450-126.422 Autoinjector - with syringe
450-126.416 Automatic Boat Drive - ABD without flame sensor technology
450-126.423 MBD - manual boat drive
450-889.620 POX kit
450-889.611 Pushing tool for manual operation

Accessories

Flame sensor for ABD 450-889.522
Filling device for activated carbon (20 mg) 402-880.212
Filling device for activated carbon (50 mg) 402-880.114

Software

The autoinjector is operated via multiWin operation and data evaluation software.

Product Required Included
Autoinjector - with syringe (450-126.422)

The ABD is operated via multiWin operation and data evaluation software.

Product Required Included
Automatic Boat Drive - ABD without flame sensor technology (450-126.416)

The MBD is operated manually, no software is required.

Product Required Included
MBD - manual boat drive (450-126.423)

The POX kit is operated via multiWin operation and data evaluation software.

Product Required Included
POX kit (450-889.620)

The pushing tool is operated manually, no software is required.

Product Required Included
Pushing tool AOX column method (450-889.611)

Consumables

402-889.039 Adsorption material for boat combustion
402-889.674 Quartz sample boats 40 x 9 mm
402-889.673 Quartz sample boats with downholder 40 x 9 mm
402-889.551 ABD coupling tube
702-889.884 Guiadance pipe for ABD
402-889.073 Guidance pipe for automatic boat drives type ABD and MVS
702-889.881 Hook for automatic boat drive ABD-2
402-889.066 Hook for ABD
402-889.515 Sealing elements horizontal , set-1
402-889.560 Set of sealing elements horizontal for boat drives
402-889.589 10 µL syringe for autoinjector
402-889.592 100 µL syringe for autoinjector
402-889.590 20 µL syringe for autoinjector
402-889.591 40 µL syringe for autoinjector
402-810.025 Activated carbon for AOX batch method
402-810.004 Activated carbon for AOX column method
402-889.759 Connections for POX bottle cap
450-889.901 Consumables & spare parts kit for AOX analysis horizontal
450-889.316 Consumables & spare parts kit for horizontal operation (ABD)
450-889.554 Consumables & spare parts kit horizontal operation
402-889.671 Feed tube for MBD
402-889.672 Hook for MBD
402-889.068 Manual syringe 50 µL
402-823.042 Manual syringe 100 µL
402-889.670 MBD coupling tube , glass
402-815.838 O-ring 14 x 4 mm
402-880.050 POX bottle attachment
402-880.049 POX bottle with base
402-889.653 POX furnace attachment of quartz glass
402-880.051 POX plug for bottle
402-823.079 Removable needles for 50 and 100 µL syringes
402-889.186 Removable needles for autoinjector AI
402-886.236 Sealing for sample port ABD
402-815.839 Sealing for sample port MBD
402-889.050 Septa, O.D. 12.5 mm
