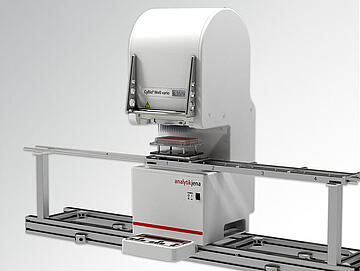

Disposable Tips for CyBio Well vario

The TipTrays are specifically developed for use with the CyBi-Well vario and contain ready-to-use disposable pipette tips in a standardized tray format. They support fast and safe tip changes in semi-automated or fully automated workflows. Available in various volumes and quality grades – with or without filters.

Tips for CyBio Well vario pipetting head 96/250 μL

Pipetting tips for 96 channel pipetting

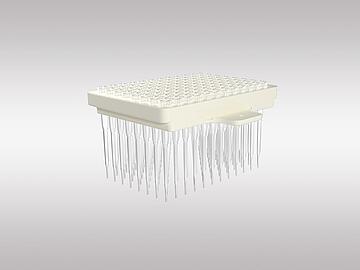

CyBio TipTray 96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard250 μL96 DW tips per TipTray418OL3800-25-559-N
Standard250 μL96 DW tips per TipTray436OL3800-26-559-N
PCR-certified, pre-sterilized250 μL96 DW tips per TipTray418OL3800-25-759-P
Standard250 μL96 DW tips per TipTray724OL3800-25-557-N
PCR-certified, pre-sterilized250 μL96 DW tips per TipTray724OL3800-25-757-P
Standard250 μLBulk DW tips42000 tipsOL3800-25-508-B
Standard250 μLBulk DW tips72500 tipsOL3800-25-507-B

Note: Tip magazine 96/250 μL (OL3391-112-25) or 8 channel magazine (OL7001-25-900) can be either filled with CyBio Tips 250 μL DW; bulk (OL3800-25-508-B) or CyBio Tips 250 μL SW; bulk (OL3800-25-507-B) and tips from CyBio TipTray 96/250 μL (all qualities)optional using Tip transfer tool (OL3396-352-25).

Tips for CyBio Well vario pipetting head 96/60 μL

Pipetting tips for 96 channel pipetting

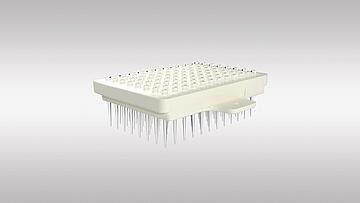

CyBio TipTray 96/60 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard60 μL96 tips per TipTray1024OL3800-25-535-N
PCR-certified, pre-sterilized60 μL96 tips per TipTray1024OL3800-25-735-P
PCR-certified, pre-sterilized, filter18 μL96 tips per TipTray824OL3800-25-935-F
45 μL96 tips per TipTray924OL3800-25-936-F
Standard60 μLBulk tips108000 tipsOL3800-25-505-B

Note: Tip magazine 96/60 μL (OL3384-25-717) or 8 channel magazine 25 μL/60 μL (OL7001-25-940) can be either filled with CyBio Tips 60 μL bulk (OL3800-25-505-B) and tips from CyBio TipTray 96/60 μL (all qualities) optional using Tip transfer tool (OL3397-25-350) except for CyBio TipTray 96/60 μL, PCR-certified, pre-sterilized, filter 45 μL net (OL3800-25-936-F).

CyBio TipTray 96/25 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard25 μL96 tips per TipTray1424OL3800-25-533-N
PCR-certified, pre-sterilized25 μL96 tips per TipTray1424OL3800-25-733-P
PCR-certified, pre-sterilized, filter13 μL96 tips per TipTray1324OL3800-25-933-F
Standard25 μLBulk tips148000 tipsOL3800-25-503-B

Note: Tip magazine 96/25 μL (OL3397-25-354) or 8 channel magazine 25 μL/60 μL (OL7001-25-940) can be either filled with CyBio Tips 25 μL bulk (OL3800-25-503-B) and tips from CyBio TipTray 96/25 μL (all qualities) optional using Tip transfer tool (OL3397-25-350).

Tips for CyBio Well vario pipetting head 96/25 μL

CyBio TipTray 96/25 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard25 μL96 tips per TipTray1424OL3800-25-533-N
PCR-certified, pre-sterilized25 μL96 tips per TipTray1424OL3800-25-733-P
PCR-certified, pre-sterilized, filter13 μL96 tips per TipTray1324OL3800-25-933-F
Standard25 μLBulk tips148000 tipsOL3800-25-503-B

Note: Tip magazine 96/25 μL (OL3397-25-354) or 8 channel magazine 25 μL/60 μL (OL7001-25-940) can be either filled with CyBio Tips 25 μL bulk (OL3800-25-503-B) and tips from CyBio TipTray 96/25 μL (all qualities) optional using Tip transfer tool (OL3397-25-350).

CyBio TipTray 96/10 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard10 μL96 tips per TipTray1524OL3800-25-532-N
PCR-certified, pre-sterilized10 μL96 tips per TipTray1524OL3800-25-732-P

Note: All qualities from CyBio TipTray 96/10 μL can be transferred in Tip magazine 96/96-1536/10 μL (OL3397-25-351) optional using Tip transfer tool (OL3397-25-350).

Tips for CyBio Well vario pipetting head 384/60 μL

Pipetting tips for 384 channel pipetting

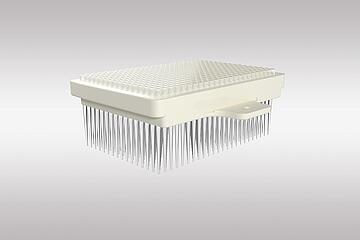

CyBio TipTray 384/60 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard60 μL384 tips per TipTray1024OL3800-25-515-N
PCR-certified, pre-sterilized60 μL384 tips per TipTray1024OL3800-25-715-P
PCR-certified, pre-sterilized, filter18 μL384 tips per TipTray824OL3800-25-915-F
45 μL384 tips per TipTray924OL3800-25-916-F
Standard60 μLBulk tips108000 tipsOL3800-25-505-B

Note: Tip magazine 384/60 μL (OL3384-25-617) or 16 channel magazine 25 μL/60 μL (OL7001-25-955) can be either filled with CyBio Tips 60 μL bulk (OL3800-25-505-B) and tips from CyBio TipTray 384/60 μL (all qualities) optional using Tip transfer tool (OL3191-350-25) except for CyBio TipTray 384/60 μL, PCR-certified, pre-sterilized, filter 45 μL net (OL3800-25-916-F).

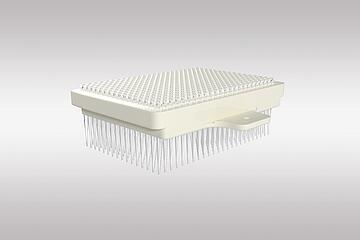

CyBio TipTray 384/25 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard25 μL384 tips per TipTray1424OL3800-25-513-N
Standard25 μL384 tips per TipTray1448OL3800-26-513-N
PCR-certified, pre-sterilized25 μL384 tips per TipTray1424OL3800-25-713-P
PCR-certified, pre-sterilized, filter13 μL384 tips per TipTray1324OL3800-25-913-F
Standard25 μLBulk tips148000 tipsOL3800-25-503-B

Note: Tip magazine 384/25 μL (OL3191-116-25) or 16 channel magazine 25 μL/60 μL (OL7001-25-955) can be either filled with CyBio Tips 25 μL bulk (OL3800-25-503-B) and tips from CyBio TipTray 384/25 μL (all qualities) optional using Tip transfer tool (OL3191-350-25).

Tips for CyBio Well vario pipetting head 384/25 μL

Pipetting tips for 384 channel pipetting

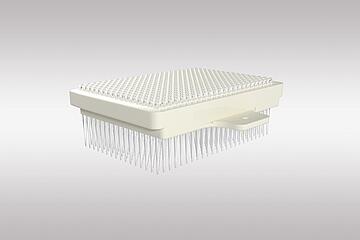

CyBio TipTray 384/25 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard25 μL384 tips per TipTray1424OL3800-25-513-N
Standard25 μL384 tips per TipTray1448OL3800-26-513-N
PCR-certified, pre-sterilized25 μL384 tips per TipTray1424OL3800-25-713-P
PCR-certified, pre-sterilized, filter13 μL384 tips per TipTray1324OL3800-25-913-F
Standard25 μLBulk tips148000 tipsOL3800-25-503-B

Note: Tip magazine 384/25 μL (OL3191-116-25) or 16 channel magazine 25 μL/60 μL (OL7001-25-955) can be either filled with CyBio Tips 25 μL bulk (OL3800-25-503-B) and tips from CyBio TipTray 384/25 μL (all qualities) optional using Tip transfer tool (OL3191-350-25).

CyBio TipTray 384/10 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard10 μL384 tips per TipTray1524OL3800-25-512-N
PCR-certified, pre-sterilized10 μL384 tips per TipTray1524OL3800-25-712-P

Note: All qualities from CyBio TipTray 384/10 μL can be transferred in Tip magazine 384/384-1536/10 μL (OL3191-118-25) optional using Tip transfer tool (OL3191-350-25).

Downloads

Overview Pipetting Tips for Liquid Handling Instruments (EN)

Open PDF
