CyBioFeliX liquid handler with UV enclosure (corner view)

Disposable Tips for CyBio FeliX

The RobotipTrays are specifically developed for the CyBio Felix and contain ready-to-use disposable pipette tips in a standardized tray format. They enable fast and safe tip changes during automated operation. Available in various volumes and quality grades – with or without filters.

Tips for CyBio FeliX Head R 96/1000 μL

Pipetting tips for 96 channel pipetting

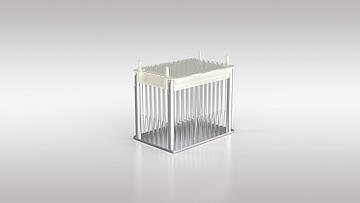

CyBio RoboTipTray 96/1000 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard1000 μL96 tips per RoboTipTray216OL3810-25-871-N
PCR certified, pre-sterilzed1000 μL96 tips per RoboTipTray216OL3810-25-874-P
PCR-certified, pre-sterilized, filter950 μL96 tips per RoboTipTray116OL3810-25-879-F

Note: Usable with Support 97 mm (OL3317-11-105)

Pipetting tips for individual 1-96 channel pipetting

CyBio RoboTipTray 1-96/1000 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified1000 μL96 tips per RoboTipTray216OL3811-25-539-N
PCR-certified, pre-sterilized1000 μL96 tips per RoboTipTray216OL3811-25-639-S
PCR-certified, pre-sterilized, filter950 μL96 tips per RoboTipTray116OL3811-25-939-F

Note: CyBio RoboTipTray 1-96/1000 μL (OL3810-24-023) can be either filled with tips from CyBio TipRack 96/1000 μL (all qualities) or with tips out of the CyBio RoboTipTray 96/1000 μL (all qualities) optional using Tip transfer tool (OL3396-352-25); usable with Support 97 mm (OL3317-11-105).

Pipetting tips for single well, 8 channel column and 12 channel row pipetting using liquid handling adapters

CyBio TipRack 96/1000 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified1000 μL96 tips per TipRack216OL3811-25-539-N
PCR certified, pre-sterilzed1000 μL96 tips per TipRack216OL3811-25-639-S
PCR-certified, pre-sterilized, filter950 μL96 tips per TipRack116OL3811-25-939-F

Note: TipRack 96/1000 μL (OL3317-11-140) can be either filled with tips from CyBio TipRack 96/1000 μL (all qualities) or with tips out of the CyBio RoboTipTray 96/1000 μL (all qualities) optional using Tip transfer tool (OL3396-352-25).

Pipetting tips for single well, 8 channel column and 12 channel row pipetting using liquid handling adapters

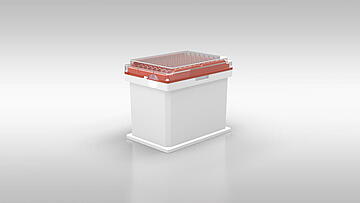

CyBio TipBox 96/1000 μL; SCR


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified, pre-sterilized, filter950 μL96 tips per TipBox110OL5022-25-579-F

Note: No individual tip pick up possible

Pipetting tips for 96 channel pipetting

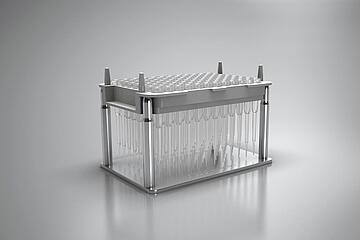

CyBio RoboTipTray 96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard250 μL96 DW tips per RoboTipTray448OL3810-26-661
PCR-certified, pre-sterilized250 μL96 DW tips per RoboTipTray412OL3810-25-664
PCR-certified, pre-sterilized, filter250 μL96 DW tips per RoboTipTray312OL3810-25-669

Note: Usable with Support 97 mm (OL3317-11-105) or Support 70 mm (OL3317-11-110)

Pipetting tips for individual 1-96 channel pipetting

CyBio RoboTipTray 1-96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard250 μLBulk DW tips42000 tipsOL3800-25-508-B

Note: CyBio RoboTipTray 1-96/250 μL (OL3810-24-003) can be manually filled with CyBio Tips 250 μL DW; bulk (OL3800-25-508-B); usable with Support 97 mm (OL3317-11-105) or Support 70 mm (OL3317-11-110).

Pipetting tips for single well, 8 channel column and 12 channel row pipetting using liquid handling adapters

TipBox 96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified, pre-sterilized250 μL96 tips per TipBox61030-102-772
PCR-certified, pre-sterilized, filter150 μL96 tips per TipBox51030-102-770

Tips for CyBio FeliX Head R 96/250 μL

Pipetting tips for 96 channel pipetting

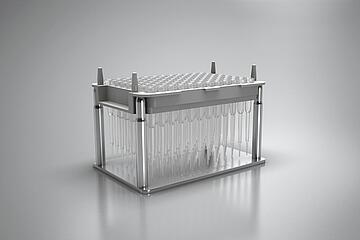

CyBio RoboTipTray 96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard250 μL96 DW tips per RoboTipTray448OL3810-26-661
PCR-certified, pre-sterilized250 μL96 DW tips per RoboTipTray412OL3810-25-664
PCR-certified, pre-sterilized, filter250 μL96 DW tips per RoboTipTray312OL3810-25-669

Note: Usable with Support 97 mm (OL3317-11-105) or Support 70 mm (OL3317-11-110)

Pipetting tips for individual 1-96 channel pipetting

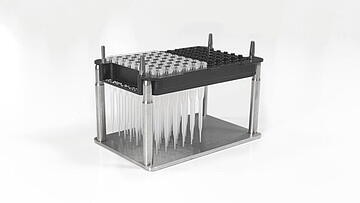

CyBio RoboTipTray 1-96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard250 μLBulk DW tips42000 tipsOL3800-25-508-B

Note: CyBio RoboTipTray 1-96/250 μL (OL3810-24-003) can be manually filled with CyBio Tips 250 μL DW; bulk (OL3800-25-508-B); usable with Support 97 mm (OL3317-11-105) or Support 70 mm (OL3317-11-110).

Pipetting tips for single well, 8 channel column and 12 channel row pipetting using liquid handling adapters

TipBox 96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified, pre-sterilized250 μL96 tips per TipBox61030-102-772
PCR-certified, pre-sterilized, filter150 μL96 tips per TipBox51030-102-770

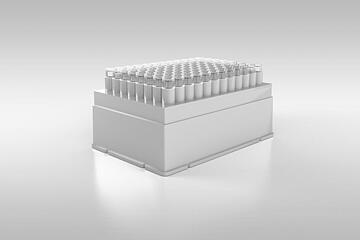

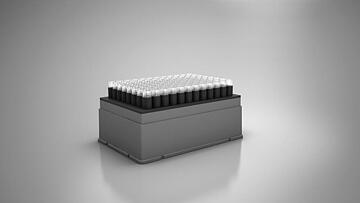

TipBox 96/50 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified50 μL96 tips per TipBox121030-102-856
PCR-certified, pre-sterilized50 μL96 tips per TipBox121030-102-858
PCR-certified, pre-sterilized, filter40 μL96 tips per TipBox111030-102-860

Tips for CyBio FeliX Head R 96/60 μL

Pipetting tips for 96 channel pipetting

CyBio RoboTipTray 96/60 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard60 μL96 tips per RoboTipTray1012OL3810-25-441
PCR-certified, pre-sterilized60 μL96 tips per RoboTipTray1012OL3810-25-444
PCR-certified, pre-sterilized, filter18 μL96 tips per RoboTipTray812OL3810-25-449
45 μL96 tips per RoboTipTray912OL3810-25-446

Note: Usable with Support 97 mm (OL3317-11-105), Support 70 mm (OL3317-11-110) or Support 49 mm (OL3317-11-100)

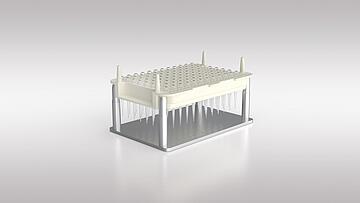

CyBio RoboTipTray 96/40 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard40 μL96 tips per RoboTipTray1412OL3810-25-431
PCR-certified, pre-sterilized40 μL96 tips per RoboTipTray1412OL3810-25-434

Note: Usable with Support 97 mm (OL3317-11-105), Support 70 mm (OL3317-11-110) or Support 49 mm (OL3317-11-100)

Pipetting tips for single well, 8 channel column and 12 channel row pipetting using liquid handling adapters

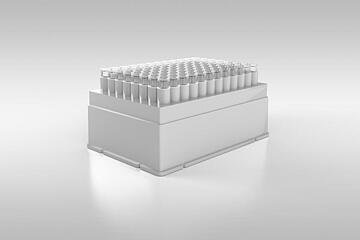

TipBox 96/50 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified50 μL96 tips per TipBox121030-102-856
PCR-certified, pre-sterilized50 μL96 tips per TipBox121030-102-858
PCR-certified, pre-sterilized, filter40 μL96 tips per TipBox111030-102-860

Tips for CyBio FeliX Head R 384/60 μL

Pipetting tips for 384 channel pipetting

CyBio RoboTipTray 384/60 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard60 μL384 tips per RoboTipTray1012OL3810-25-241
PCR-certified, pre-sterilized60 μL384 tips per RoboTipTray1012OL3810-25-244
PCR-certified, pre-sterilized, filter18 μL384 tips per RoboTipTray812OL3810-25-249
45 μL384 tips per RoboTipTray912OL3810-25-246

Note: Usable with Support 97 mm (OL3317-11-105), Support 70 mm (OL3317-11-110) or Support 49 mm (OL3317-11-100)

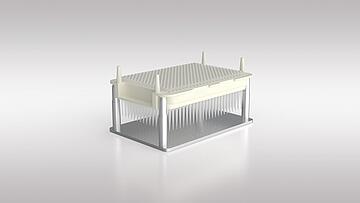

CyBio RoboTipTray 384/40 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard40 μL384 tips per RoboTipTray1412OL3810-25-231
PCR-certified, pre-sterilized40 μL384 tips per RoboTipTray1412OL3810-25-234

Note: Usable with Support 97 mm (OL3317-11-105), Support 70 mm (OL3317-11-110) or Support 49 mm (OL3317-11-100)

Pipetting tips for single well and 16 channel column pipetting using liquid handling adapters

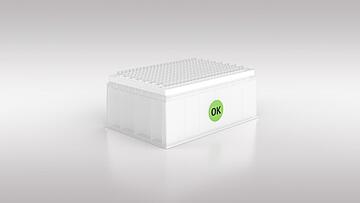

CyBio TipBox 192/60 μL, columns


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard for column (16 channel)50 μL192 tips per
TipBox		1010OL0008-25-575-N

Pipetting tips for single well and 24 channel row pipetting using liquid handling adapters

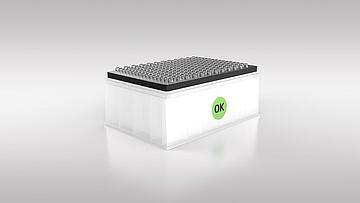

CyBio TipBox 192/60 μL, rows


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard for row (24 channel)50 μL192 tips per
TipBox		1010OL0008-25-585-N

Tips for CyBio FeliX CHOICE Head

Pipetting tips for high volume single well, 8 channel column and 12 channel row pipetting using CHOICE adapters for 10 μL - 1000 μL

CyBio TipRack 96/1000 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified1000 μL96 tips per TipRack216OL3811-25-539-N
PCR-certified, pre-sterilized1000 μL96 tips per TipRack216OL3811-25-639-S
PCR-certified, pre-sterilized, filter950 μL96 tips per TipRack116OL3811-25-939-F

Note: TipRack 96/1000 μL (OL3317-11-140) can be either filled with tips from CyBio TipRack 96/1000 μL (all qualities) or with tips out of the CyBio RoboTipTray 96/1000 μL (all qualities) optional using Tip transfer tool (OL3396-352-25).

CyBio TipBox 96/1000 μL; SCR


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified, pre-sterilized, filter950 μL96 tips per TipBox110OL5022-25-579-F

Note: No individual tip pick up possible

TipBox 96/250 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified, pre-sterilized250 μL96 tips per TipBox61030-102-772
PCR-certified, pre-sterilized, filter150 μL96 tips per TipBox51030-102-770

Pipetting tips for low volume single well, 8 channel column and 12 channel row pipetting using CHOICE adapters for 1 μL - 50 μL

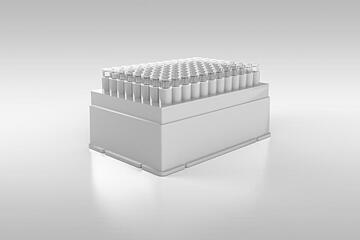

TipBox 96/50 μL


QualityNet VolumeFormatReferenceTrays/PUOrder Number
PCR-certified50 μL96 tips per TipBox121030-102-856
PCR-certified, pre-sterilized50 μL96 tips per TipBox121030-102-858
PCR-certified, pre-sterilized, filter40 μL96 tips per TipBox111030-102-860

Pipetting tips for low volume single well and 16 channel column pipetting using CHOICE adapters for 1 μL - 50 μL

CyBio TipBox 192/60 μL, columns


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard for column (16 channel)50 μL192 tips per
TipBox		1010OL0008-25-575-N

Pipetting tips for low volume single well and 24 channel row pipetting using CHOICE adapters for 1 μL - 50 μL

CyBio TipBox 192/60 μL, rows


QualityNet VolumeFormatReferenceTrays/PUOrder Number
Standard for row (24 channel)50 μL192 tips per
TipBox		1010OL0008-25-585-N

Downloads

Overview Pipetting Tips for Liquid Handling Instruments (EN)

Open PDF
