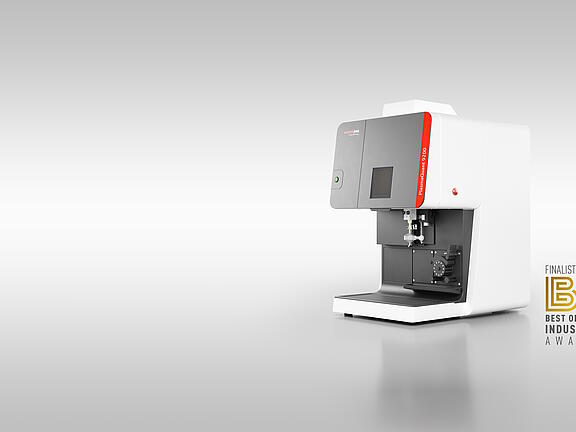

PlasmaQuant 9200 Series Compact Size. Peak Performance.

Technology at the Highest Level for Demanding Routine Analyses

High-Resolution Optics – Maximum Sensitivity – Ultimate Confidence in Your Results

The advanced optical system delivers exceptional resolution, enabling outstanding sensitivity, precision, and accuracy – even in the most complex sample matrices. The proven encapsulated echelle spectrometer combines a dual monochromator with a powerful high-resolution CCD detector, providing full access to all emission lines across the 160 to 900 nm spectral range. With a spectral resolution of up to 2 pm @ 200 nm, even the most challenging interferences can be reliably separated. With over 43,000 selectable lines, you can pinpoint the ideal emission line for your application and gain deeper insights into your samples. High sensitivity from interference-free lines ensures robust trace element analysis and maximum result reliability. The automatic neon correction guarantees a wavelength accuracy of less than 0.4 pm – without the need for elaborate calibration – and delivers system readiness in under 10 minutes.

Your benefits:

• Maximum flexibility thanks to a comprehensive selection of emission lines
• Interference-free spectra for precise results
• Reliable detection even in complex sample matrices
• Fast system readiness with short startup times

Intuitive Operation – The V Shuttle Torch

The modular V Shuttle Torch with plug-and-play design simplifies maintenance and increases system uptime. Interchangeable components allow for flexible method adaptation while reducing consumables costs. All gas connections automatically engage as the torch clicks precisely into the guide rail – no tools required. The vertical plasma setup enables highly precise analysis of matrix-rich samples without the need for time-consuming pre-dilution and ensures minimal background signals. Even under harsh conditions, the system provides excellent long-term stability – free from deposits or soot buildup.

Your benefits:

• Reduced maintenance and increased availability
• Broad application scope with strong analytical performance
• Efficient use of consumables
• Torch replacement without alignment

Flexible Plasma Observation – Dual View PLUS

Trace and major elements require different plasma viewing modes. Dual View PLUS allows axial or radial observation for each emission line – offering two perspectives per sample. This enables detection of concentrations ranging from the sub-ppb to high-percent levels. Automatic signal attenuation in both viewing directions ensures an exceptionally wide dynamic range. Integrated counter-gas technology minimizes interference from the cooler plasma tail while maintaining the stability of the axial viewing zone. The result: high-sensitivity analysis with minimal sample preparation effort.

Your benefits:

• Optimal observation modes for every application
• Counter-gas technology for enhanced sensitivity
• Single-run detection from sub-ppb to percent levels
• Minimal sample preparation required

A Technological Edge – The Latest Generation RF Generator

The modern 27 MHz RF generator delivers highly stable and powerful plasma – even for demanding sample matrices. Low matrix-specific detection limits, reduced sample handling, and robust methodologies significantly enhance the precision and efficiency of your analysis. The high-performance three-turn coil supports a power range from 700 to 1700 Watt, making it ideal for routine industrial applications such as brines, metal concentrates, or volatile organics. Thanks to its short warm-up time, the system is ready for use within minutes.

Your benefits:

• Stable plasma generation for any sample matrix
• Accurate results without dilution steps
• Maximum flexibility for changing applications
• Reliable detection even in challenging sample types
