Flexible high-throughput protein purification with PhyTip® Columns on the CyBio FeliX
- Automated protein purification using Biotage PhyTip columns
- Usage of a range of different affinity resins using the principle of dual flow chromatography
- Optional: automated prefilling of buffers and subsequent neutralization of eluted target protein
PhyTips by Biotage are advanced pipetting tips equipped with an integrated separation column, designed to process a sample through dual flow chromatography. These tips are available with a variety of affinity resins, tailored for diverse protein purification needs.
The flexible automation of this purification process using the CyBio FeliX Liquid Handling System from Analytik Jena eliminates repetitive manual steps, thereby enhancing reproducibility and achieving higher purity levels. This automation is designed to accommodate a variable number of samples, ranging from 1 to 96 in parallel, and supports various affinity resins.
How to equip your CyBio FeliX for PhyTips
CyBio FeliX Basic Unit with Enclosure
OL5015-24-100
Flexible Benchtop automated liquid handling platform with enclosure (does not include pipetting head, liquid handling adapters and PC)
CyBio FeliX Head R 96/1000 µL
OL3316-14-950
96-channel pipetting head for the CyBio FeliX with automatic tip exchange in volume range 10-1000 µL (includes Support 97 mm height)
CyBio RoboTipTray 1-96/1000 µL
OL3810-24-023
Reusable & autoclavable metal tip magazine for use with CyBio FeliX Head R 96/1000 µL variably from single tip up to all 96 tips (includes Support 97 mm height)
CyBio TipRack 96/1000 µL *
OL3811-25-539-N
Plastic rack in blister with 96 PCR-certified 1000 µL tips for transfer into CyBio RoboTipTray 1-96/1000 µL
CyBio RoboTipTray 96/1000 µL *
OL3810-25-871-N
Plastic tray with 96 standard 1000 µL tips per RoboTipTray
Support 97 mm height *
OL3317-11-105
Holder for CyBio RoboTipTray with 1000 µL tips on the CyBio FeliX deck when not in use
Tip Transfer Tool 96/1000 µL *
OL3317-25-125
Tool for transfer of 250 µL or 1000 µL CyBio tips

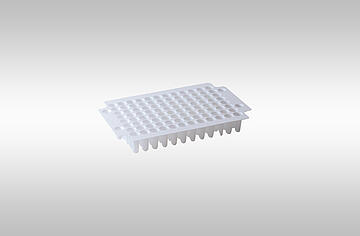

Protective Plate *
OL3317-25-125
Single use plate to protect CyBio Felix deck from residual liquid in tips dripping
* Optional
Additional materials beyond the Analytik Jena portfolio Because we want you to be well prepared.
Biotage PhyTip® columns (1 mL volume) in Tecan style (recognizable by Part No. PTT-91-…)
Buffers suitable for equilibration, washing and elution of PhyTips and optional neutralization (supplied with PhyTip® columns or by own recipe)
Reservoirs in ANSI/SLAS format for buffers required for purification (e.g. Agilent Reservoir single cavity, polypropylene, 300 mL, 96 pyramids base geometry, Part No. 201244-100)
96-Well plates with U-bottom for capture and elution step (e.g. Thermo Scientific™ Nunc 96 Well Round (U) Bottom Plate, Cat. No. 163320)
96-Deep-Well plates with U-bottom for wash step (e.g. Eppendorf Deepwell Plate 96/2000 µL, Cat. No. 0030505301)
Your advantages:
The application covers the entire purification without manual intervention, providing true walk-away time.
The workflow is compatible with PhyTip columns of various resin volumes, utilizing dual flow chromatography.
The modular application script allows maximum flexibility, with 1-96 samples and adjustable parameters for each purification.
Application specialists can provide customization to your specific needs upon request.
How to perform PhyTip protein purifications with CyBio FeliX
1
In the Application Studio, select the PhyTip columns you are intended to use, customize your purification run and choose whether the required buffers should be pre-filled automatically by the CyBio FeliX.
2
Load the decks of the CyBio FeliX as indicated in the Application Studio: Place the required number of PhyTip columns in the designated tip holder, position your samples and buffers (or already manually pre-filled plates) accordingly.
3
Start the PhyTip application in the Application Studio and watch how CyBio FeliX handles your workflow. CyBio FeliX performs buffer prefilling, equilibrates the PhyTip columns and purifies up to 96 samples in parallel, ending with the final elution of your target protein.
4
The Application Studio indicates successful purification by a message box. The eluted target protein can be either collected or optionally neutralized automatically by the CyBio FeliX after a brief change of tips and buffers on the decks.
