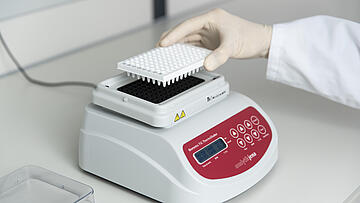

Biometra TSC ThermoShaker Thermomixer for All Applications Which Need Heating, Cooling and/or Mixing

  • Removable block modules for microtubes up to 2 mL
  • Three instruments in one: thermomixer, mixer, incubator
  • Temperature range: RT -15 °C to 100 °C

The smooth-running, compact thermomixer can heat, cool and mix samples up to 2 mL evenly and intensively in interchangeable block modules. Setting parameters is intuitive and during operation, set and actual values are displayed simultaneously.

Well Tempered from Cool to Warm and Well Mixed

The Thermomixer with its five easily interchangeable block modules with cooling function for different sample volumes supports a wide variety of incubation and shaking tasks in the laboratory.

  • Temperature control from room temperature -15 °C to 100 °C
  • Smooth running, compact and easy to operate

Download Product Information

Compact Benchtop Thermomixer with Cooling Feature

'The ThermoShaker TSC is a thermomixer with heating and cooling function, as well with a variable mixing speed from 250 rpm to 1,400 rpm. Active cooling with Peltier technology allows a temperature adjustment from + 4 °C to + 100 °C. Hereby, the application range is significantly enhanced compared to the ThermoShaker TS1. Five removable block modules for 0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL and 96 well microtiter plates (PCR-plates) meet the requirements of most laboratory applications. Choosing the temperature calibration function allows the user to calibrate the unit over a range of approx. ± 6% of the selected temperature to compensate differences in the thermal behavior of tubes or MTP‘s from different manufacturers. The variable shaking speed from 250 rpm to 1,400 rpm combined with the 2 mm shaking orbit and the “Soft-Start“ function allows gentle to vigorous shaking. The high-quality and extremely quiet motor guarantees controlled and reproducible shaking throughout the shaking range. A special counter weight technology serves for a stable stand, same with TS1. Shaking can be configured for continuous or timed operation with buzzer and automatic switch-off. The new temperature calibration option allows the calibration of the temperature currently shown in the display by ± 6%. This can be used to compensate for differences in the thermal behavior of tubes and PCR plates from different suppliers.



The ThermoShaker TSC has been designed for easy and optimal operation. Temperature, speed and time are indicated on the two-line display for set and actual values both. The TSC, as the TS1, is very compact, with low profile and small footprint of 205 mm × 230 mm × 130 mm (W × D × H). Additionally the low voltage power supply enables safe cold room or incubator operation.

Products

Biometra TSC Thermal Shaker 100 - 240 V, EU plug

The Biometra TSC ThermoShaker with cooling function is ideal for any laboratory that needs to heat, cool and shake liquid samples on a microliter scale.

Order number: 846-051-600

Biometra TSC Thermal Shaker 100 - 240 V, US plug

The Biometra TSC ThermoShaker with cooling function is ideal for any laboratory that needs to heat, cool and shake liquid samples on a microliter scale.

Order number: 846-051-690

Technical Data

Dimension (width x depth x height)

Biometra TSC Thermal Shaker 100 - 240 V, EU plug
846-051-600

205 mm x 230 mm x 130 mm

Biometra TSC Thermal Shaker 100 - 240 V, US plug
846-051-690

205 mm x 230 mm x 130 mm

Order Information

Order number

Description

846-051-600 Biometra TSC Thermal Shaker Biometra TSC Thermal Shaker w/o block module, 100 - 240 V, EU plug
846-051-690 Biometra TSC Thermal Shaker Biometra TSC Thermal Shaker w/o block module, 100 - 240 V, US plug

Accessories

TSC block module for 20 x 0.2 ml/12 x 1.5 ml, TSC 846-051-612
TSC block module for 20 x 0.5 ml/12 x 1.5 ml, TSC 846-051-613
TSC block module for 24 x 1.5 ml, TSC 846-051-615
TSC block module for 24 x 2.0 ml, TSC 846-051-616
TSC block module for MTP or 96 x 0.2 ml, TSC 846-051-614

Downloads

Title Language Info
Fl Biometra ThemoShaker TSC (DE) German PDF, 209 KB
Flyer Biometra ThemoShaker TSC (EN) English PDF, 203 KB
