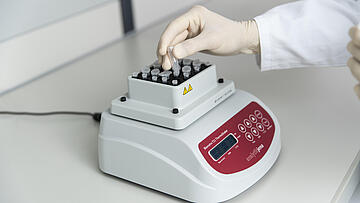

Biometra TS1 ThermoShaker Compact Thermomixer for the Lab Bench

  • Interchangeable block modules for microtubes up to 2.0 ml
  • Three instruments in one: thermomixer, mixer, incubator
  • Temperature range: RT + 5 °C to 100 °C

The smooth-running, compact thermomixer can incubate samples up to 2 ml in exchangeable block modules and mix them uniformly and intensively. Setting parameters is intuitive and during operation, set and actual values are displayed simultaneously.

Well Temperatured and Thoroughly Mixed

The Thermomixer with its 5 easily interchangeable block modules for different sample volumes supports a wide range of incubation and shaking tasks in the laboratory.

  • Temperature control from room temperature + 5 °C to 100 °C
  • Can be used in cold rooms
  • Quiet, compact and easy to operate

Download Product Information

The compact thermomixer for your lab

The ThermoShaker TS1 is a variable speed and variable temperature microtube shaking incubator. Combining the incubation phase with mixing has multiple benefi ts: reduction of reaction process times, reduction of operator‘s workload and increasing efficiency of many procedures (e. g. transformation of bacterial cells). Five interchangeable block modules are available to meet the needs of most laboratory procedures for 0.2 mL, 0.5 mL, 1.5 mL and 2.0 mL microtubes as well as 96-well microtiter plates (PCR-plates). Choosing the temperature calibration function allows the user to calibrate the unit over a range of approx. ± 6% of the selected temperature to compensate differences in the thermal behavior of tubes or MTP‘s from different manufacturers. The variable shaking speed from 250 to 1,400 rpm combined with the 2 mm shaking orbit and the soft start function allows gentle to vigorous mixing. The high quality quiet motor ensures regulated and reproducible rotation throughout the speed range. Shaking can be configured for continuous or timed operation with buzzer and automatic switch-off. The ThermoShaker TS1 is designed for easy operation. Temperature, speed and time are indicated on the two-line display for both set and actual values. The apparatus is very compact, with a low profile and small footprint. Additionally the low voltage power supply enables safe cold room or incubator operation.

Products

Biometra TS1 ThermoShaker 100 - 240 V, EU plug

The Biometra TS1 ThermoShaker belongs as basic equipment in every laboratory that needs to incubate and shake liquid samples on a microliter scale.

Order number: 846-051-500

Biometra TS1 ThermoShaker 100 - 240 V, US plug

The Biometra TS1 ThermoShaker belongs as basic equipment in every laboratory that needs to incubate and shake liquid samples on a microliter scale.

Order number: 846-051-590

Technical Data

Dimension (width x depth x height)

Biometra TS1 ThermoShaker 100 - 240 V, EU plug
846-051-500

205 mm x 230 mm x 130 mm

Biometra TS1 ThermoShaker 100 - 240 V, US plug
846-051-590

205 mm x 230 mm x 130 mm

Order Information

Order number

Description

846-051-500 Biometra TS1 ThermoShaker Biometra TS1 ThermoShaker, 100 - 240 V, EU plug
846-051-590 Biometra TS1 ThermoShaker Biometra TS1 ThermoShaker, 100 - 240 V, US plug

Accessories

TS1 block module for 20 x 0.2 ml + 12 x 1.5 ml, TS1 846-051-512
TS1 block module for 20 x 0.5 ml/12 x 1.5 ml tubes, TS1 846-051-513
TS1 block module for 24 x 2.0 ml tubes, TS1 846-051-516
TS1 block module for MTP or 96 x 0,2 ml tubes, TS1 846-051-514
TS1 block module or 24 x 1.5 ml tubes, TS1 846-051-515

Downloads

Title Language Info
Flyer Biometra TS1 ThermoShaker (DE) German PDF, 189 KB
Flyer Biometra TS1 ThermoShaker (EN) English PDF, 184 KB
